Lap Joint Flange/Loose Flange

What is a lap joint flange or loose flange?

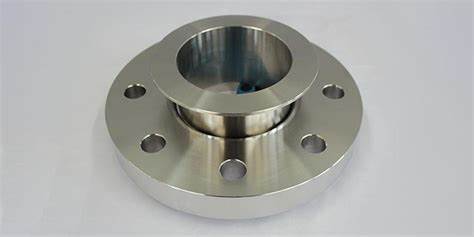

Lap joint flange(LJ flange) also called loose flange,it consists two parts,the backing flange and the stub end.The stub end will be butt welded to the pipe,the backing flange will be slip around the stub end.The backing flange is not connected to the pipe or stub end directly and it could be rotated.So it is convenient to install the flange connection if there is some misalignment between the bolt holes.

INQUIRE NOW
Category: Brand:
Description

Specifications of lap joint flange/loose flange:

Table of Content 隐藏
1 Specifications of lap joint flange/loose flange:
1.1 Materials of lap joint/loose flange:
1.2 Sealing face of lap joint flange:

ANSI/ASME standard:

  • ANSI/ASME B16.5 class 150 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 300 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 400 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 600 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 900 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 1500 lap joint flange dimensions: ½”-24″
  • ANSI/ASME B16.5 class 2500 lap joint flange dimensions: ½”-12″

EN standard:

  • EN 1092-1 PN6 loose plate flange dimensions: DN10-DN1200
  • EN 1092-1 PN10 loose plate flange dimensions: DN10-DN1200
  • EN 1092-1 PN16 loose plate flange dimensions: DN10-DN1000
  • EN 1092-1 PN25 loose plate flange dimensions: DN10-DN800
  • EN 1092-1 PN40 loose plate flange dimensions: DN10-DN600

JIS standard:

  • JIS B2220 5K lap joint flange without hub dimensions: 15A-400A
  • JIS B2220 5K lap joint flange with hub dimensions: 450A-600A
  • JIS B2220 10K lap joint flange without hub dimensions: 15A-200A
  • JIS B2220 10K lap joint flange with hub dimensions: 250A-600A
  • JIS B2220 16K lap joint flange with hub dimensions: 15A-600A
  • JIS B2220 20K lap joint flange with hub dimensions: 15A-600A

Materials of lap joint/loose flange:

Haihao Group manufacture lap joint flanges with various materials,such as carbon steel,stainless steel and alloy steel.

Carbon steel lap joint flange:

  • ASTM A105 lap joint flange
  • ASTM A350 LF2 lap joint flange
  • SS400 lap joint flange
  • P235GH lap joint flange
  • P250GH lap joint flange
  • C22.8 lap joint flange
  • Q235 lap joint flange

Stainless steel lap joint flange:

  • ASTM A182 F304 lap joint flange
  • ASTM A182 F304L lap joint flange
  • ASTM A182 F316 lap joint flange
  • ASTM A182 F316L lap joint flange
  • ASTM A182 F321 lap joint flange
  • ASTM A182 F347 lap joint flange

Alloy steel lap joint flange:

  • ASTM A694 F42 lap joint flange
  • ASTM A694 F46 lap joint flange
  • ASTM A694 F52 lap joint flange
  • ASTM A694 F56 lap joint flange
  • ASTM A694 F60 lap joint flange
  • ASTM A694 F65 lap joint flange
  • ASTM A694 F70 lap joint flange
  • ASTM A182 F5 lap joint flange
  • ASTM A182 F9 lap joint flange
  • ASTM A182 F11 lap joint flange
  • ASTM A182 F12 lap joint flange
  • ASTM A182 F22 lap joint flange
  • ASTM A182 F91 lap joint flange

Sealing face of lap joint flange:

The lap joint flange(loose flange) only have a flat face,the stub end face is the sealing face in the two lap joint flanges connections,so the stub end should have a same dimensions with the raised face standard.
