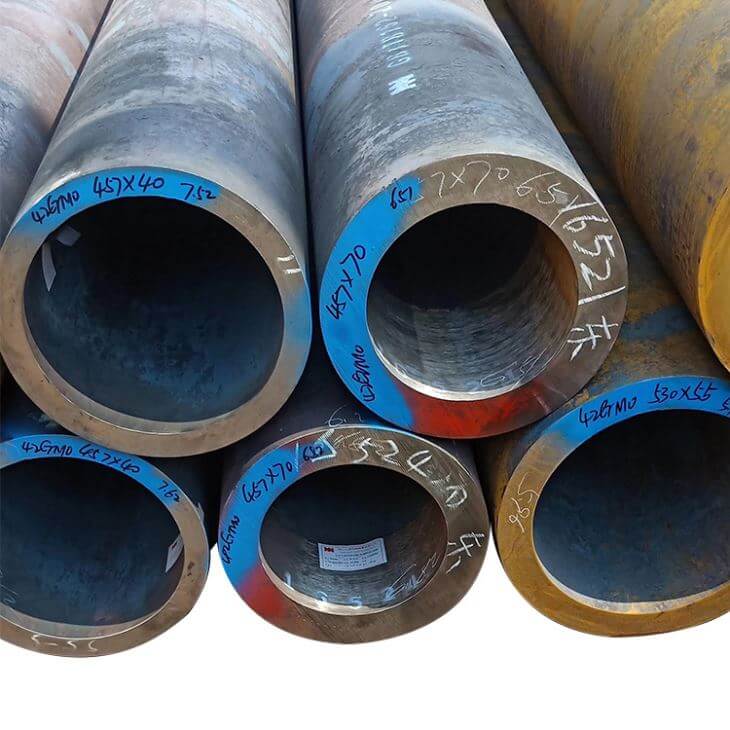

A335 P22 pipe is a kind of chrome moly pipes (ASME S/A335, Chrome-Moly) listed in ASTM A335, which has become a standard in the power generation industry and the petrochemical industry, not only because of its tensile strength, corrosion resistance and high-temperature strength, but also because of its cost-effectiveness. Chrome Moly Pipes are popular in P-Grades P5, P9, P11, P22, P91 and P92. The most common use of grades P11, P22 and P91 is in the powder industry and petrochemical plants, Grades P5 and P9 are commonly used in refineries.
Table of Content
隐藏
We stock a full range of the following A335 Chrome Moly Pipe grades
Sizes
1/4” Nominal to 24”O.D. Seamless Alloy Pipe
Wall Thickness – Schedule 40 through XXH
Chrome Moly Pipe Specifications & Grades
SA335 & A335 – Grades P5, P9, P11, P22, P91, P92
A691 1-1/4 Chrome through 9 Chrome (Welded Alternative to A335)
Chrome Moly Pipe Specifications
A/SA335
NPS 1/4″ – 24″
Schedules 40 through 160, STD, XH and XXH
Scope
This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service. ASTM A335 pipe ordered to this specification shall be suitable for fusion welding, bending, flanging (vanstoning), and similar forming operations.
Material & Manufacture
Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.
Heat Treatment Requirements
| P5, P9, P11, and P22 | |||
| Grade | Heat Treatment Type | Normalizing Temperature Range F [C] | Subcritical Annealing or Tempering Temperature Range F [C] |
| P5 (b,c) | Full or Isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| Subcritical Anneal (P5c only) | ***** | 1325 – 1375 [715 – 745] | |
| P9 | Full or Isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| P11 | Full or Isothermal Anneal | ||
| Normalize and Temper | ***** | 1200 [650] | |
| P22 | Full or Isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| P91 | Normalize and Temper | 1900-1975 [1040 – 1080] | 1350-1470 [730 – 800] |
| Quench and Temper | 1900-1975 [1040 – 1080] | 1350-1470 [730 – 800] |
A335 P22 Pipes Chemical Requirements
| Grade | P-5 | P-9 | P-11 | P-22 | P-91 | P-91 shall also include the following: | ||
| Element | UNS Designation | K41545 | S50400 | K11597 | K21590 | K91560 | ||
| Carbon | 0.15 max | 0.15 max | 0.05 – 0.15 | 0.05 – 0.15 | 0.08 – 0.12 | V at 0.18 – 0.25 | ||
| Manganese | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | 0.30 – 0.60 | N at 0.030 – 0.070 | ||
| Phosphorous, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 | Ni at 0.40 max | ||
| Sulfur, max | 0.025 | 0.025 | 0.025 | 0.025 | 0.010 | Al at 0.02 max | ||
| Silicon | 0.50 max | 0.25 – 1.00 | 0.50 – 1.00 | 0.50 max | 0.20 -0.50 | Cb at 0.06 – 0.10 | ||
| Chromium | 4.00 – 6.00 | 8.00 – 10.00 | 1.00 – 1.50 | 1.90 – 2.60 | 8.00 – 9.50 | Ti at 0.01 max | ||
| Molybdenum | 0.45 -0.65 | 0.90 – 1.10 | 0.44 – 0.65 | 0.87 – 1.13 | 0.85 – 1.05 | Zr at 0.01 max | ||
A335 P22 Pipes Machanical Properties
| Seamless | ||||||||
| P-5 | P-9 | P-11 | P-22 | P-91 | P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC]. | |||
| Tensile Strength, min., psi | ||||||||
| ksi | 60 | 60 | 60 | 60 | 85 | |||
| MPa | 415 | 415 | 415 | 415 | 585 | |||
| Yield Strength, min., psi | ||||||||
| ksi | 30 | 30 | 30 | 30 | 60 | |||
| MPa | 205 | 205 | 205 | 205 | 415 | |||
Permissible Variation in Wall Thickness
| NPS [DN] Designator | Tolerance, % from Specified | |||
| Over | Under | |||
| 1/8 to 2 1/2 [6 to 65] incl., all t/D ratios | 20.0% | 12.5% | ||
| Above 2 1/2 [65], t/D < or = 5% | 22.5% | 12.5% | ||
| Above 2 1/2 [65], t/D > 5% | 15.0% | 12.5% | ||
| (t = Specified Wall Thickness; D = Specified Outside Diameter) | ||||
A335 P22 Seamless Pipes Elongation Requirements
| Calculated Minimum Elongation Values | |||||
| Elongation in 2 in. or 50 mm, min % | |||||
| Wall Thickness | P5, P9, P11, P22 | P91 | |||
| in. | mm | Longitudinal | Transverse | Longitudinal | |
| 5/16 (0.312) | 8 | 30 | 20 | 20 | |
| 9/32 (0.281) | 7.2 | 28 | 19 | 19 | |
| 1/4 (0.250) | 6.4 | 27 | 18 | 18 | |
| 7/32 (0.219) | 5.6 | 26 | 17 | ||
| 3/16 (0.188) | 4.8 | 24 | 16 | ||
| 5/32 (0.156) | 4 | 22 | 15 | ||
| 7/8 (0.125) | 3.2 | 21 | 14 | ||
| 3/32 (0.094) | 2.4 | 20 | 13 | ||
| 1/18 (0.062) | 1.6 | 18 | 12 | ||
Permissible Variations in Outside Diameter
Outside Diameter at any point shall not vary from standard specified more than:
| NPS [DN] Designator | Over | Under | ||
| in. | mm | in. | mm | |
| 1/8 to 1 1/2 [6 to 40], incl. | 1/64 (0.015) | 0.40 | 1/64 (0.015) | 0.40 |
| Over 1 1/2 to 4 [40 to 100], incl. | 1/32 (0.031) | 0.79 | 1/32 (0.031) | 0.79 |
| Over 4 to 8 [100 to 200], incl. | 1/16 (0.062) | 1.59 | 1/32 (0.031) | 0.79 |
| Over 8 to 12 [200 to 300], incl. | 3/32 (0.093) | 2.38 | 1/32 (0.031) | 0.79 |
| Over 12 [300] | +/- 1% of the specified outside diameter | |||
