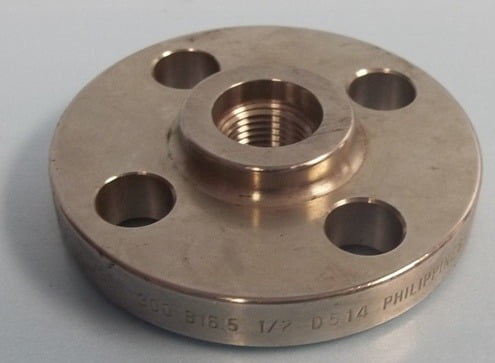

ASME B16.5 ASTM A182 316L Threaded Flange NPT RF 4 Inch CL150
1. Material: 316L
2. Size: 4″ (DN100)

3. Standard: ASME B16.54. Pressure: 150#, etc

China Flange Manufacturer Yaang offers ASME B16.5 ASTM A182 316L Threaded Flange NPT RF, 4 Inch, CL150.

Composition ranges for 316L grade stainless steel

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

316L

Min

–

–

–

–

–

16.0

2.00

10.0

–

Max

0.03

2.0

0.75

0.045

0.03

18.0

3.00

14.0

0.10

Type ASME B16.5 ASTM A182 316L Threaded Flange
Size 4″ (DN100)
Standards SO, WN, SW, TH, LJ, BL, PL, etc
Material Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91

Duplex Stainless Steel: F51, 2205, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10,70/30
Applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

Threaded Flange

Flange Dimensions & Approximate Masses
ANSI, ASME, ASA, B16.5 150lb/sq.in. Threaded Flange NPT
Pipe
Flange Data
Hub Data
Raised Face
Drilling Data
Weight
　 Nominal Size
 　
A
C
D
E
F
G
H
I
J
 　
Outside Dia
Overall Dia
Flange Thickness min
Overall Length
Threaded Length min
Hub Dia
Face Dia
Number of Holes
Bolt Hole Dia
Dia of Circle of Holes
Kg/ Piece
　In Mm
In Mm
In Mm
In Mm
In Mm
In Mm
In Mm
In Mm
In Mm
½
0.84
3.50
0.440
0.620
0.620
1.190
1.38
4
0.62
2.38
0.39
21.3
88.90
11.20
15.70
15.70
30.20
35.10
15.7
60.45
¾
1.05
3.88
0.500
0.620
0.620
1.500
1.69
4
0.62
2.75
0.56
26.7
98.60
12.70
15.70
15.70
38.10
42.9
15.7
69.85
1
1.315
4.25
0.560
0.690
0.690
1.940
2
4
0.62
3.12
0.78
33.4
108.00
14.20
17.50
17.50
49.30
50.8
15.7
79.25
1 ¼
1.66
4.62
0.620
0.810
0.810
2.310
2.5
4
0.62
3.50
1.03
42.2
117.30
15.70
20.60
20.60
58.70
63.5
15.7
88.90
1 ½
1.9
5.00
0.690
0.880
0.880
2.560
2.88
4
0.62
3.88
1.32
48.3
127.00
17.50
22.40
22.40
65.00
73.15
15.7
98.60
2
2.375
6.00
0.750
1.000
1.000
3.060
3.62
4
0.75
4.75
2.06
60.3
152.40
19.10
25.40
25.40
77.70
91.9
19.10
120.70
2 ½
2.875
7.00
0.880
1.120
1.120
3.560
4.12
4
0.75
5.50
3.28
73
177.80
22.40
28.40
28.40
90.40
104.6
19.10
139.70
3
3.5
7.50
0.940
1.190
1.190
4.250
5
4
0.75
6.00
3.85
88.9
190.50
23.90
30.20
30.20
108.00
127
19.10
152.40
3 ½
4
8.50
0.940
1.250
1.250
4.810
5.5
8
0.75
7.00
4.81
101.6
215.90
23.90
31.75
31.75
122.20
139.7
19.10
177.80
4
4.5
9.00
0.940
1.310
1.310
5.310
6.19
8
0.75
7.50
5.30
114.3
228.60
23.90
33.30
33.30
134.90
157.2
19.10
190.50
5
5.563
10.00
0.940
1.440
1.440
6.440
7.31
8
0.88
8.50
6.07
141.3
254.00
23.90
36.60
36.60
163.60
185.7
22.40
215.90
6
6.625
11.00
1.000
1.560
1.560
7.560
8.5
8
0.88
9.50
7.45
168.3
279.40
25.40
39.60
39.60
192.00
215.9
22.40
241.30
8
8.625
13.50
1.120
1.750
1.750
9.690
10.62
8
0.88
11.75
12.10
219.1
342.90
28.40
44.50
44.50
246.10
269.7
22.40
298.50
10
10.75
16.00
1.190
1.940
1.940
12.00
12.75
12
1.00
14.25
16.50
273
406.40
30.20
49.30
49.30
304.80
323.8
25.40
362.00
12
12.75
19.00
1.250
2.190
2.190
14.380
15
12
1.00
17.00
26.20
323.8
482.60
31.75
55.60
55.60
365.30
381
25.40
431.80
14
14
21.00
1.380
2.250
2.250
15.750
16.25
12
1.12
18.75
34.60
355.6
533.40
35.10
57.15
57.15
400.10
412.7
28.40
476.30
16
16
23.50
1.440
2.500
2.500
18.00
18.5
16
1.12
21.25
44.80
406.4
596.90
36.60
63.50
63.50
457.20
469.9
28.40
539.80
18
18
25.00
1.560
2.690
2.690
19.880
21
16
1.25
22.75
48.90
457.2
635.00
39.60
68.30
68.30
505.00
533.4
31.75
577.90
20
20
27.50
1.690
2.880
2.880
22.00
23
20
1.25
25.00
61.90
508
698.50
42.90
73.15
73.15
558.80
584.2
31.75
635.00
24
24
32.00
1.880
3.250
3.250
26.120
27.25
20
1.38
29.50
86.90
609.6
812.80
47.80
82.60
82.60
663.40
692.1
35.10
749.30
NOTE:
1. The thread conforms to ASME B1.20.1 NTP threads as described in Section 10. (The only exceptions are small male and female plain face threaded flanges which use NPSL recount threads.)
2. Class 150 threaded flanges are made without a counterbore. Threads are chamfered to the major diameter (approx.) at an angle of 45° (approx.) at the back of the flange.
3. Weights are based on manufacturer’s data and are approximate.
4. For tolerances +-0.5mm.

316L Threaded Flange NPT RF, this kind of flange is in the socket of flat welding flange pipe thread tube and pipe connection, the flange material does not necessarily consistent with pipes. One of the flange is fitting. So, this kind of flange. Therefore has been widely used, the thickness of the section of the high neck through the high neck gradually transition to the wall thickness, thus increasing the intensity of 316L Threaded Flange rf.
